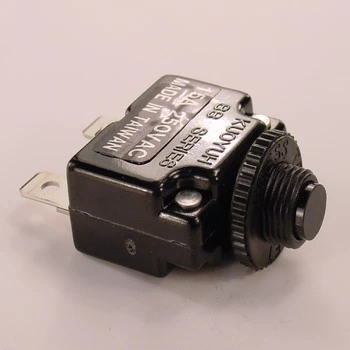

Circuit Breaker 88

Circuit Breaker 88 Series
SPECIFICATION:

Rating: 3 ~ 25 A 125/250 V AC

Input Power: 125/250 Vac 50V dc 50-60Hz

Interrupting Capacity : 1,000Amp x 125 V ac 200Amp x 250V ac

Voltage Drop : Less than 0.25V
Dielectric strength: AC 1500 V 1 minute
Insulation resistance: >500 Megaohms

Reset Time: Within 60 seconds

Temperature Rise at Terminal Block: Less than 65^oC at 100% of rated current applied continuously at 25^oC

Contact Endurance: 125Vac X 150% of rated current >500 Cycles

Calibration ( at 25^oC)

100% of rated current: Hold, No-Trip

135% of rated current: Trip in 1 Hour

200% of rated current: 5-25 seconds Trip

300% of rated current: 1.6-4.8 seconds Trip

Approvals : RoHS,UL,CUL,CSA,VDE
